 Mitel 3300 6 & CUCM 9/10 SIP Trunk Configuration Guide





  Mitel 3300 6 & CUCM 9/10 SIP Trunk Configuration Guide
Many thanks to moderator
martyn for allowing us to re-print his excellent document.


This document is written as an update to the original configuration guide from Cisco that covered the configuration of Mitel software release 7.1 and CUCM 6.1. It is aimed at getting calls working between the two systems and has not been tested for all functions (such as MWI, conferencing, etc ) as the original document was done. Further testing would be required to confirm interoperability on the newer versions.

This document covers the configuration of a SIP trunk directly between a 3300 and a Cisco CUCM system. Notes at the end of the document cover the configuration of a Cisco Voice router rather than CUCM as the terminating point.



Mitel Configuration



This configuration is based on a MCD 6 system. Earlier releases may contain different forms and could require extra configuration. It is assumed that the system already has CoS and CoR configured and that an understanding of the configuration of a Mitel system is of an advanced level. No steps are given for where to find forms appropriate to the configuration.


System Configuration

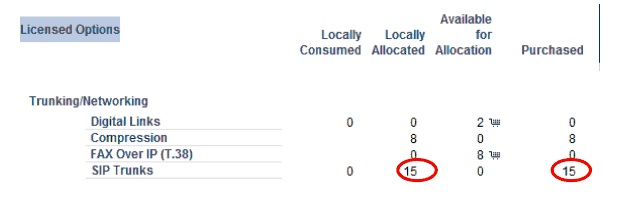

Under License and Option Selection check that SIP trunk licenses have been applied to the ARID and have been allocated to the system.

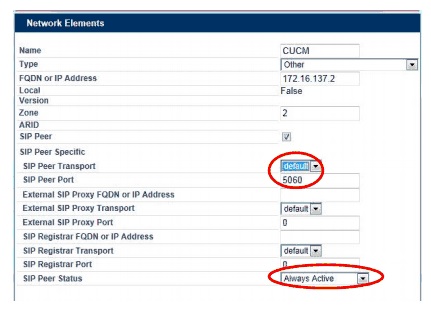

Create a new Network Element and include the IP address of the CUCM and set the transport as default using port 5060. Make sure that the peer is always active.





If the Trunk is crossing a lower bandwidth WAN link change the Zone from 1 to another number (that isnít the same as the controller) that is unused on your system, to ensure that G.729 is preferred when SDP is negotiating.

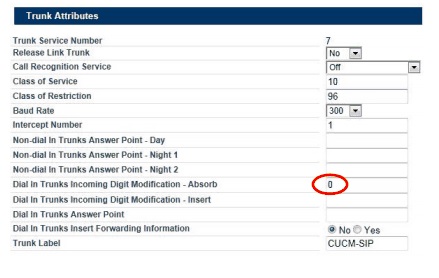

Create a new Trunk attribute and assign a name, CoS and CoR appropriate to the system. Ensure that a 0 (or appropriate number based on what is being received from CUCM) is placed in the Dial in Trunks digit mod absorb, as if left blank then calls will fail with a 503 error in your SIP trace stating that the service is unavailable.



Note: if programmed incorrectly you will receive a SIP 503 error

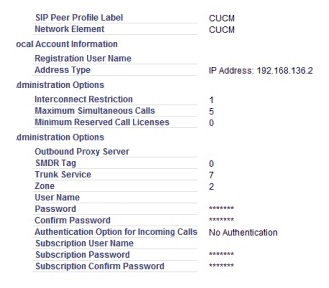

Create a new SIP Peer Profile. Assign a name to the profile, and select the network element that you previously created. Set the Max calls based on your license, and set the trunk service to the one created above.





Configure the appropriate tabs as follows:



Call Routing



Calling Line ID



SDP Options (Most Important Tab)



The most important options here are the Force sending SDP in initial invite (SIP Early Offer), and prevent the user of 0.0.0.0. If Renegotiating SDP is not enabled then calls will fail if both ends do not agree on the correct codec up front, so this is important to enable.
Also ensure that the packetisation rate is the same on both ends, otherwise calls will fail. Default is 20ms.

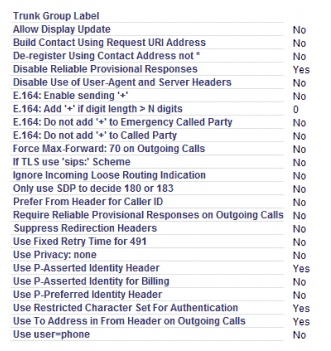

Signaling and Header manipulation





Call Routing

Create a new entry in SIP Peer profile Assignment by incoming DID. Inlcude the extension range of the mitel handsets, and select the profile. Give the entry a name.



If you do not create this entry then you will end up with SIP 404 errors in your SIP trace when calls are being made from CUCM to the Mitel.

If any outbound digit manipulation is required create an entry in the DID ranges for CPN substitution and assign the entry under the CUCM SIP Peer profile.

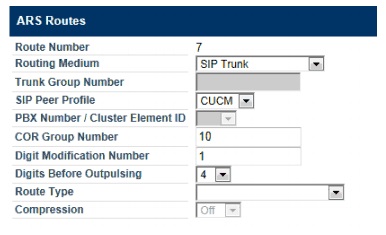

Create a new ARS route to point to the SIP trunk. Ensure that an appropriate CoR is used, and digit
mod number is correct for the number of digits that may need to be absorbed on outbound calls.

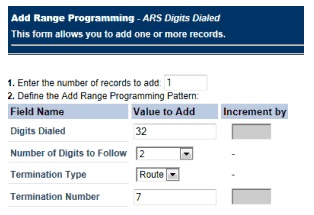

Create a new ARS digits dialed entry(ies) for all ranges that are covered on CUCM. Ensure that the correct termination number is entered based on the ARS route created above.







CUCM Configuration



This configuration is based on a CUCM 9 or 10 system. Earlier releases may contain different forms and could require extra configuration. It is assumed that the system already has Device Pools,
Regions, partitions and CSSís configured and that an understanding of the configuration of a Call Manager system is of an advanced level. No steps are given for where to find forms appropriate to the configuration.







System Configuration

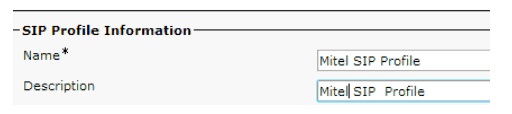

Create a SIP Profile for use with the SIP Trunk. Suggestion is to copy the pre-existing Standard SIP Profile. Assign a new name to the Copy that can be identified as being for the Mitel trunk.





All other options can be left default for now. Save the new profile.

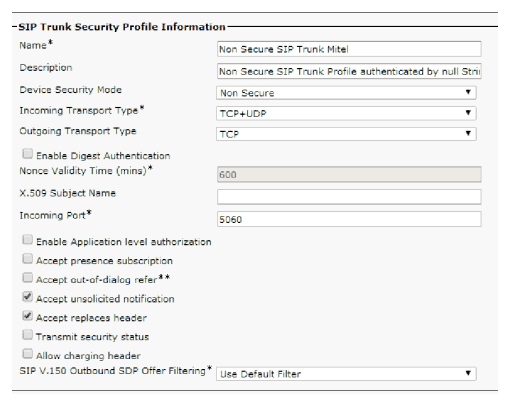

Create a copy of the Non Secure SIP trunk Profile. Name the copy appropriate to the use, and ensure that accept unsolicited notification and accept replaces header are enabled

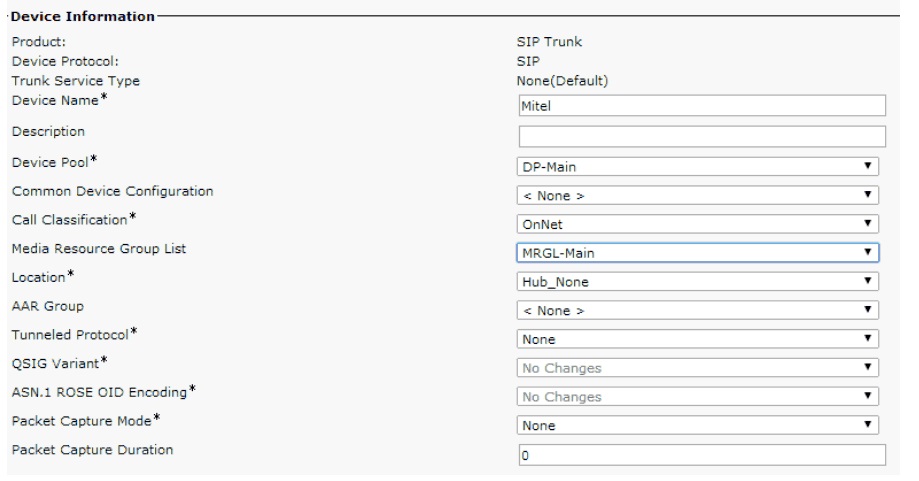

Create a new SIP Trunk.
Assign a name to the trunk. Select the appropriate device pool, and MRGL. Call classification can be set as OnNet.

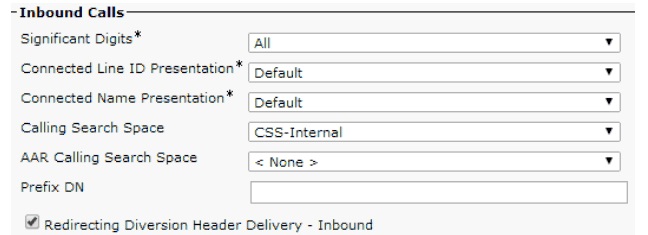

Under Inbound calls set the appropriate number of significant digits, as well as a CSS for incoming calls. Assign a prefix if required. Select Redirecting Diversion header delivery inbound to allow features such as CFA to display the correct number when passing across the trunk.







If any digit manipulation is required configure this under incoming party settings. Generally this isnít  required though for an internal trunk between systems.

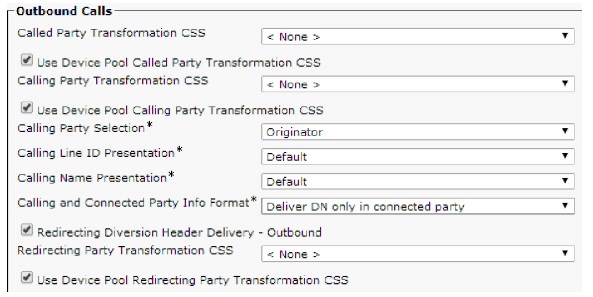

Under outbound calls select Redirecting Diversion header Oubound to allow features such as CFA to display the correct number when passing across the trunk. All other outbound settings can generally be left default unless required specific to the environment.

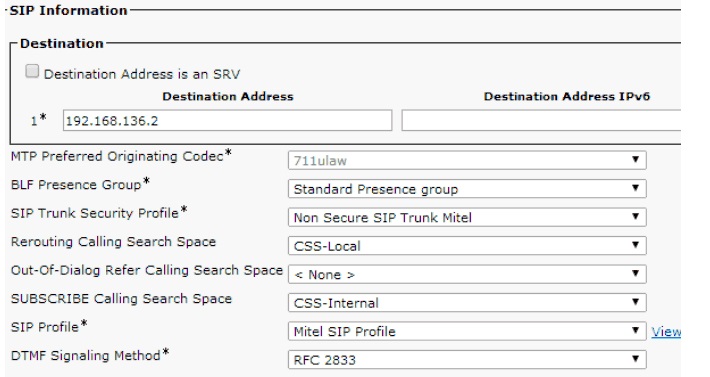

In SIP information enter in the IP address of the Mitel system, and ensure that port 5060 is the destination (this is the default). Select the Security profile and SIP profile created earlier, as well as a Rerouting CSS. Ensure that DTMF signalling is set to RFC 2833 for inband DTMF signalling to work.



Save the trunk configuration and reset the trunk for changes to apply.







Call Routing



You should now be able to receive incoming calls from the Mitel, if you have configured your inbound CSS correctly to include the partition that your phones are in.

For calls to be able to be made from CUCM registered phones to the Mitel phones, there are multiple ways of configuring the routing, but here we will use a route pattern.

Create a new RP, and assign the mask for the RP based on the extensions on the Mitel. Assign a partition for the RP, and give it a description.

Set the gateway to be the Mitel SIP trunk that you created above, and ensure that the pattern is allowed to route. Call Classification can be set as OnNet. Apply any Called/Calling party transformations as appropriate to your environment.

Save the RP. Remember that it will reset the trunk, so ensure that no calls are active.

Assuming that you have configured your Partitions and CSSís correctly you should now be able to make an outbound call to a Mitel extension.







SIP Traces

From the Mitel maintenance command line you can enable SIP tracing for debugging of calls during the configuration process. To enable SIP tracing enter SIP Trace On and when call problem has been replicated you can turn it off with SIP Trace Off

Once completed the trace file can be downloaded via FTP from the /vmail directory on the 3300. The file can then be opened with Wireshark for analysis of the issue(s).
